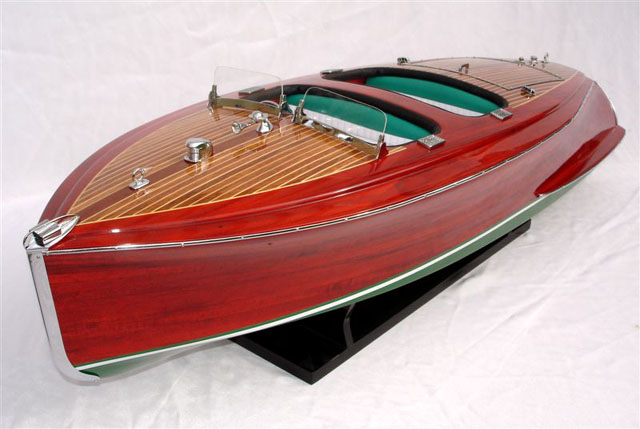

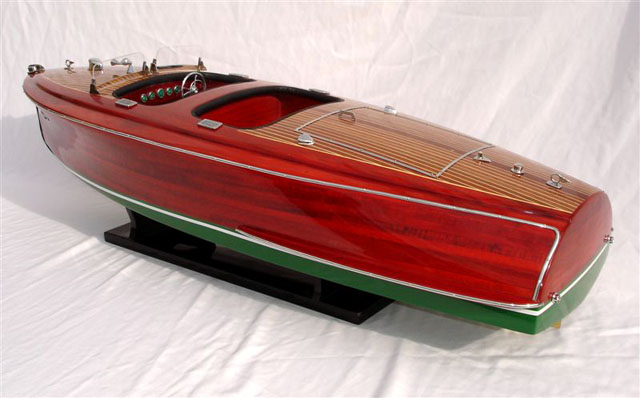

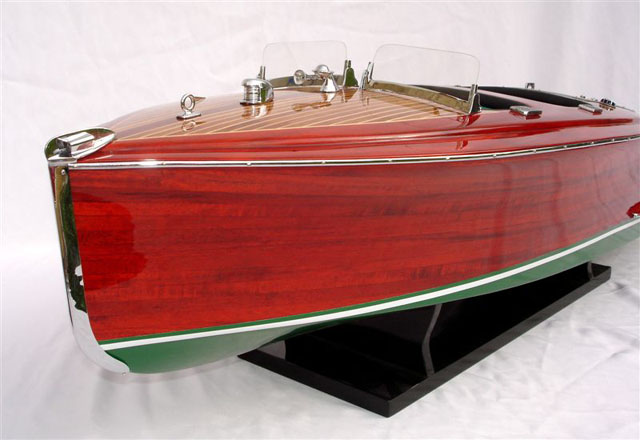

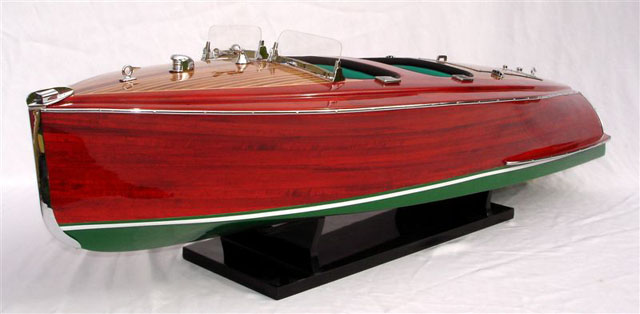

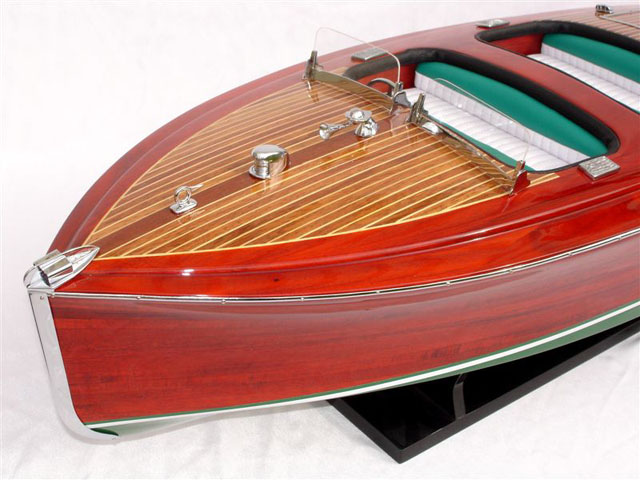

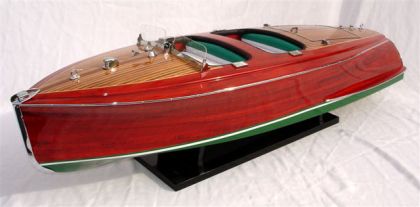

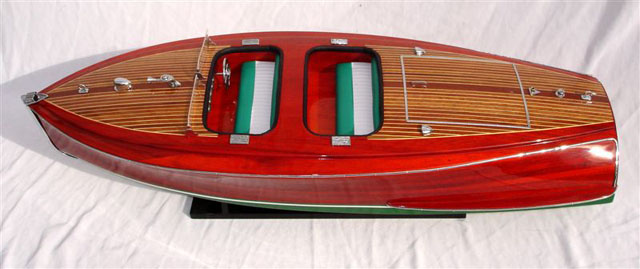

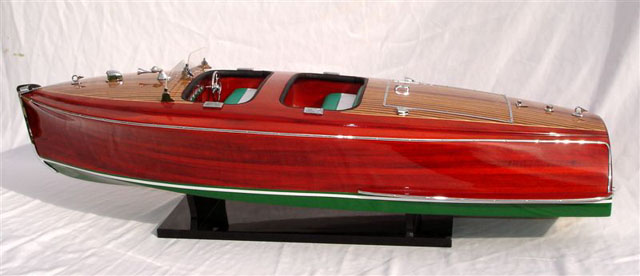

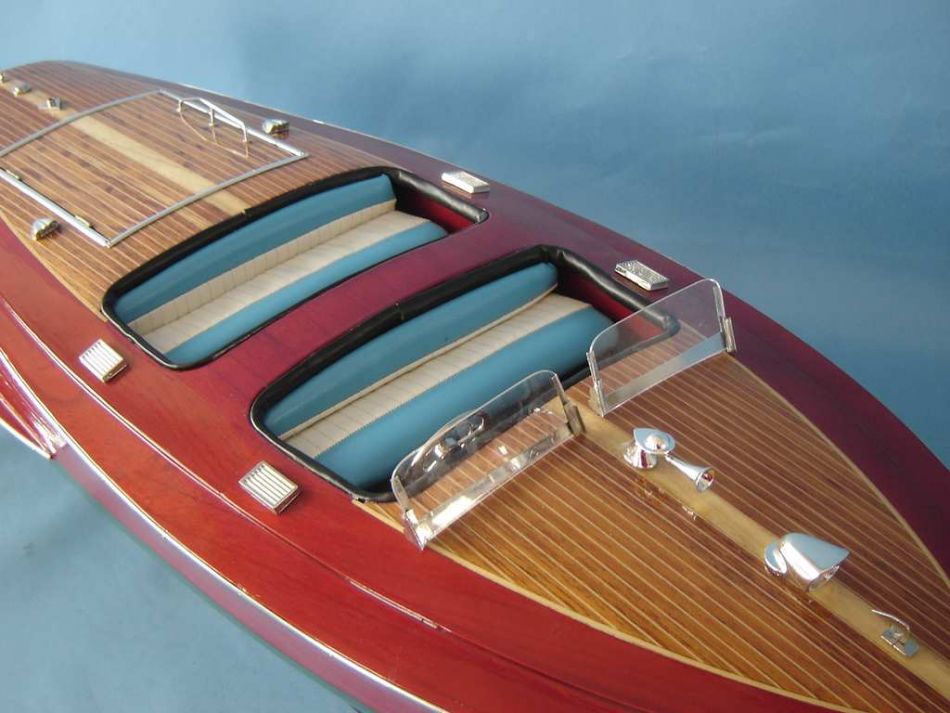

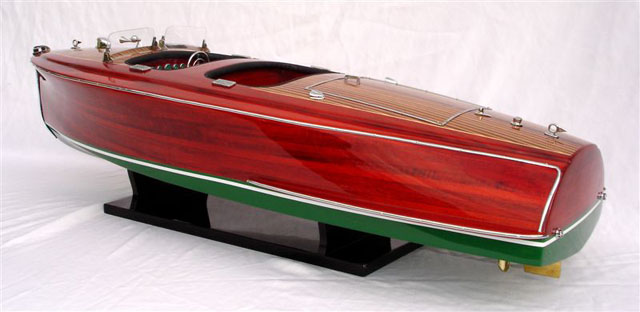

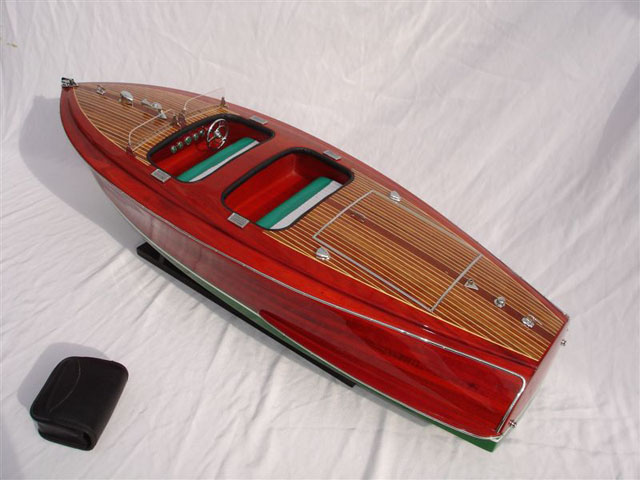

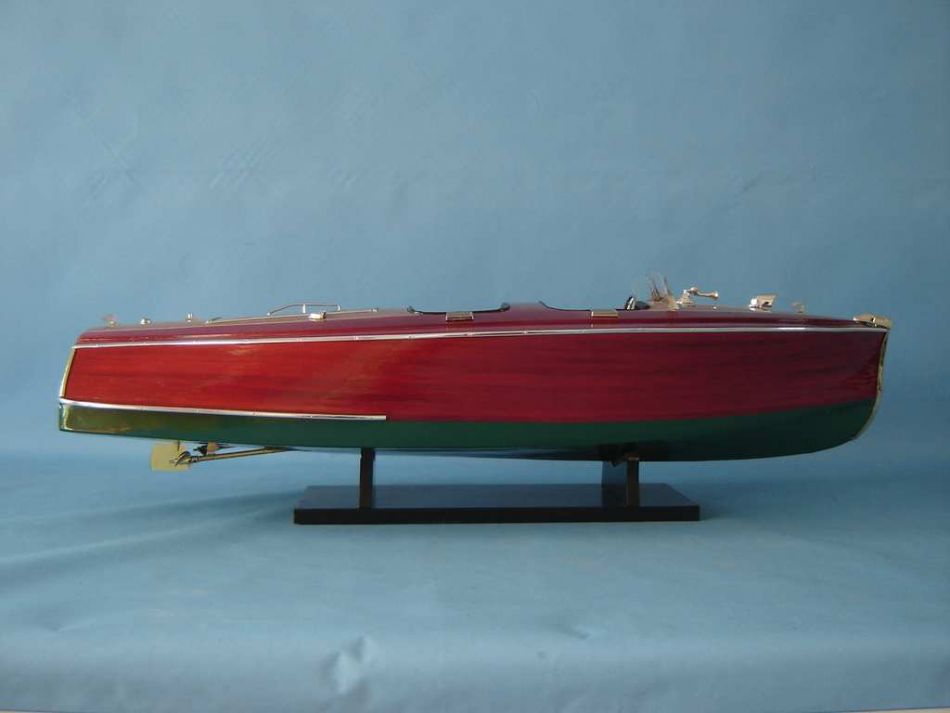

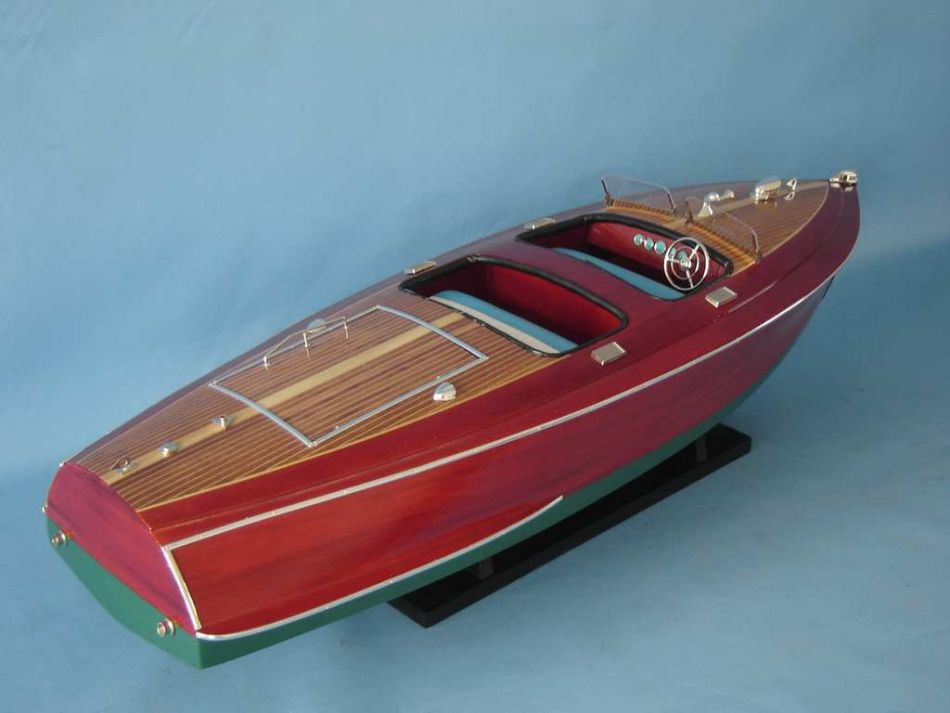

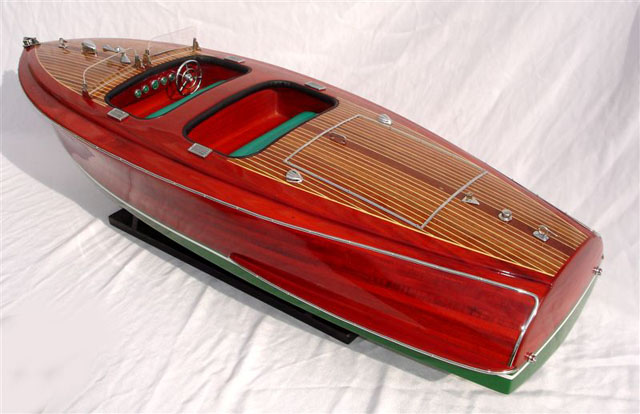

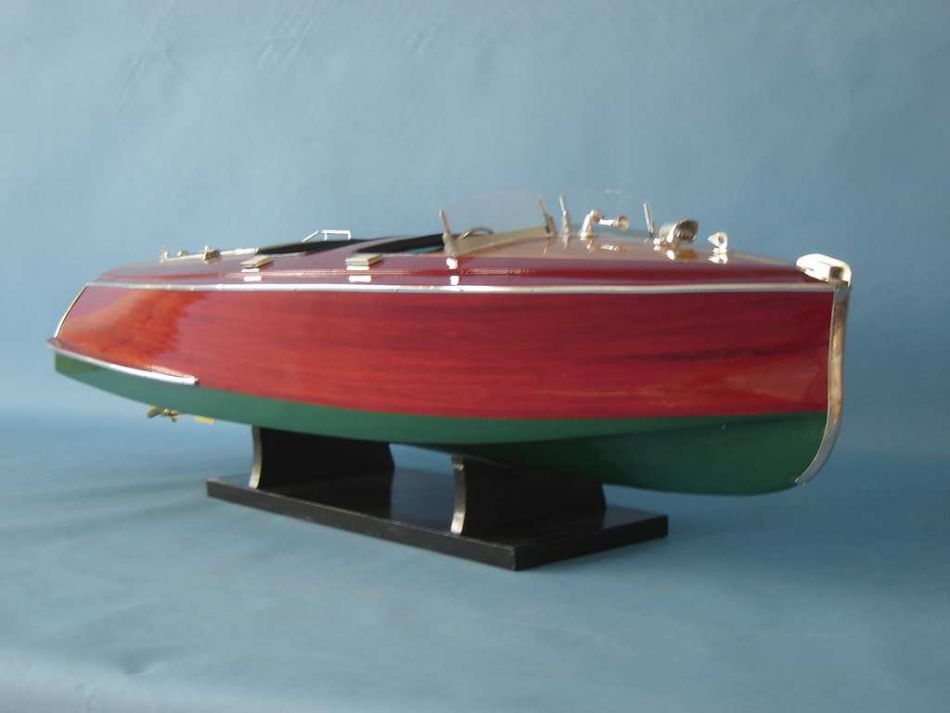

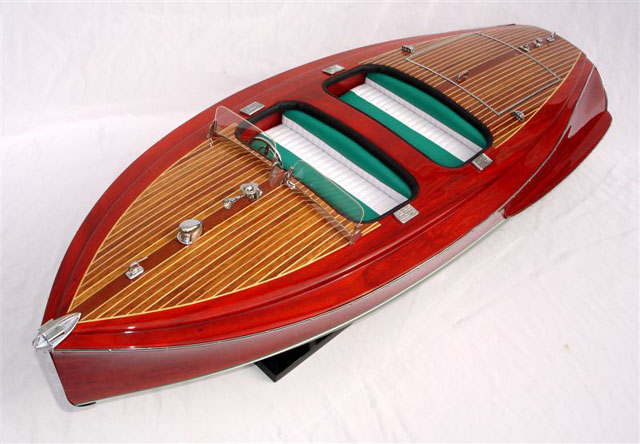

RC Chris Craft Dual Cockpit 32"

View: Features | Specs | History

Total Dims: 32" L x 8" W x 7" H

Price: ~~$1199.99~~ $999.99

Enlarge All Pictures

Professionally Packaged

Shipped as pictured

Model is already built

($ prev next

Features: RC Chris Craft Dual Cockpit 32"

SOLD FULLY ASSEMBLED - THIS IS NOT A MODEL SHIP KIT
32" long x 8" Wide x 7" High
The hull has been waterproofed and floats. Water will not get inside the model
Speed boat reaches up to 20-25 mph.
Comes with long distance high quality remote control
Battery for the boat is rechargeable. Boat comes with rechargeable battery and charger.
Plank on frame construction where each strip of wood is applied to the hull one at a time
Made from heartwood honduras mahogany. One of the highest quality mahoganies available and typically used for real boats.
Highly polished smooth finish. Many layers of paint and varnish applied. Each layer is left to dry and micro sanded before another layer is applied.

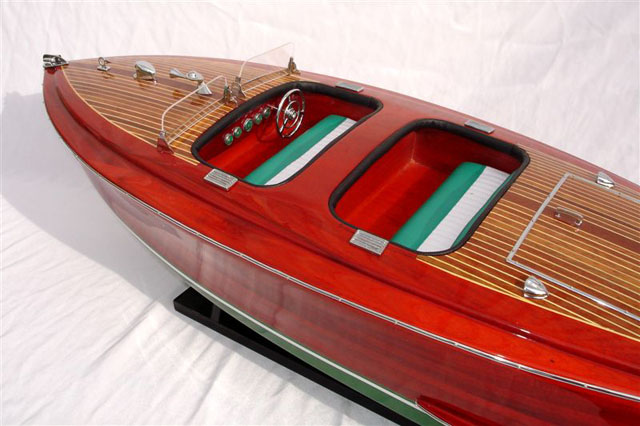

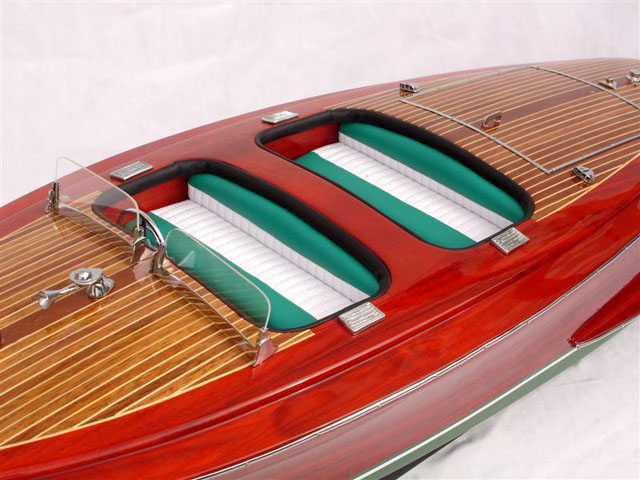

Plush leather seats

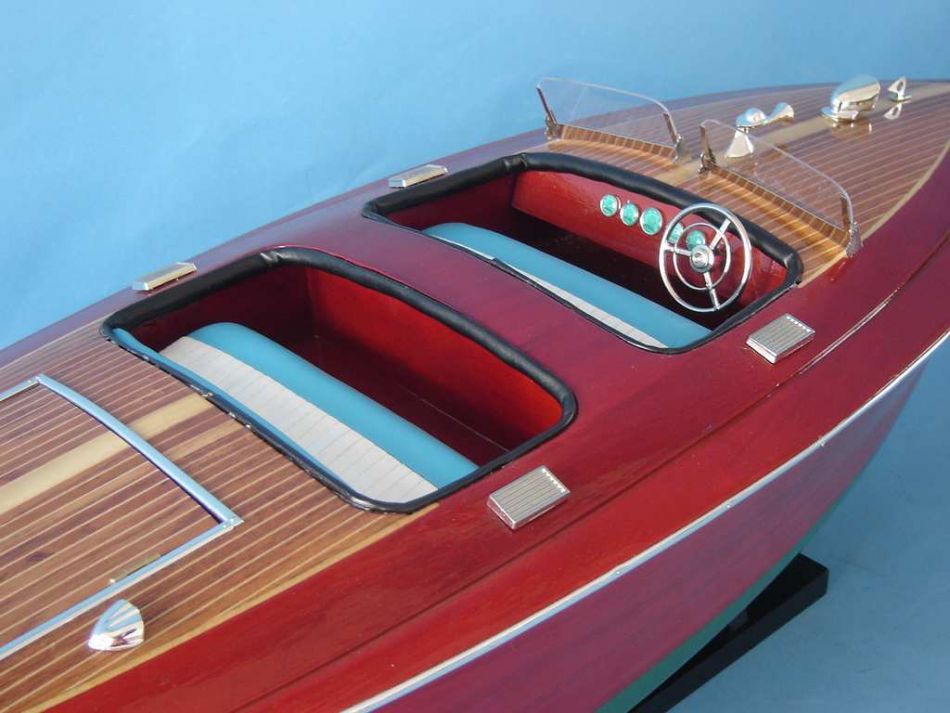

Dashboard has realistic gauges/switches - not a sticker
Meticulously painted like the actual Chris Craft Dual Cockpit
To build this ship, extensive research was done using various sources such as drawings, copies of original plans and photos of the actual ship.

.

Related Speed Boats

Chris Craft Dual Cockpit

RC Chris Craft Triple Coc

Technical Specifications: RC Chris Craft Dual Cockpit 32"

Specifications:

A. Channels: 2 Channels;

B. Model type : boat/ car;

C. RF power : Less than 20dbm;

D. Modulation: GFSK;

E. Code type: Digital;

F. Sensitivity : 1024;

G. Low voltage warning: Yes (Less than 9v);

H. DSC port : Yes (3.5mm);

I. Charger port : Yes;

J. Power :12v DC (1.5vAA*8);

K. Weight : 328 g;

L. ANT Length : 26mm;

M. Size: 159*99*315;

N. Certificate: CE ,FCC;

O. Frequency bank: 2.4G.

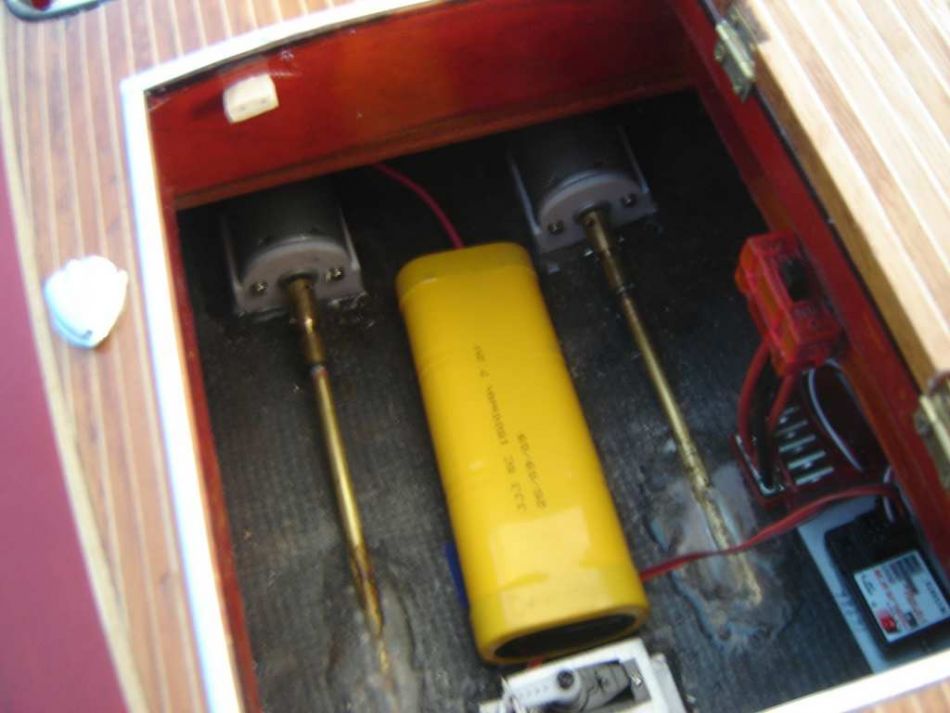

DC Motor: 540sh series:

Rated voltage of 7.2v under.

No-Load Current ; No-Load Speed; Load Current ; Load Speed

1.8A 21065 r/min 8.2A 18969 r/min

Two-way governor:

Forward Current : 200A, Back Current : 100A With Brake.

Propeller pitch: 50mm. Diameter : 30mm.

Servo: Digital power and precision.( Sculls boats )

Operating Voltage: 4.8~6.0V

Torque: 4.8V/2.4kg/ cm .

Speed: 0.14S/60*

Servo: Digital power and precision. ( Single paddle )

Operating Voltage: 4.8~6.0V

Torque: 5.0V/1.7kg/ cm .

Speed: 0.10S/60*

Battery: Ni-C d 1500mAh /7.2V

SPECIFICATION OF C00-7201 CHARGER

1? APPLICATE

THIS SPECIFICATION APPLY TO C00-7201 CHARGER

2? SPECIFICATION

2-1? BATTERY TYPE/7.2V Ni-C d

2-2? ENVIRONMENT/

-5?55C*?

2-3?Electrical specification/

ITEM	SPECIFICATION
CHARGE	constant current
INPUT	AV90-240V 50/60Hz
CHARGE V	11V(max)
CHARGE C	400mA

2-4?LED INDICATION

STATE	RED LED	FLASH TIME
STAND BY	extinguish
BEING CHARGED	Long-lighting
FULL CHARGED	Flash	0.5S ON/0.5S OFF

2-5?SECURITY/

Max voltage protect	If the voltage of bat is over 11V,it will stop charge and showing full.
?ΔV Test	Refer to ?ΔV to judge if the bat is full.
TIMER protect	If the charging time is longer than 5hr, it will stop Charge, Showing full.

History: RC Chris Craft Dual Cockpit 32"

This beautiful Remote Control Chris Craft Dual Cockpit was one of first quality pleasure power boats that was affordable. But the truth be known, these boats flourished during Prohibition with the demand for speed in water transportation. The remote areas along waterways on the Great lakes, upstate New-York and the Eastern shore were havens for gin mills. Both bootleggers and the Law required fast efficient transportation to travel to out-of-the way areas.
